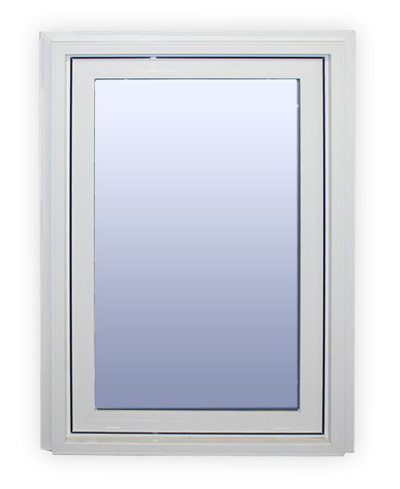

Angled Shapes Window

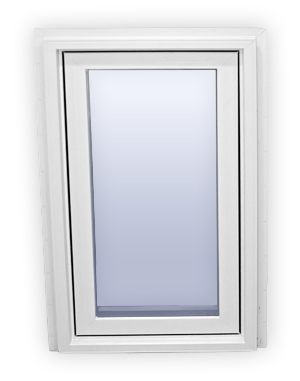

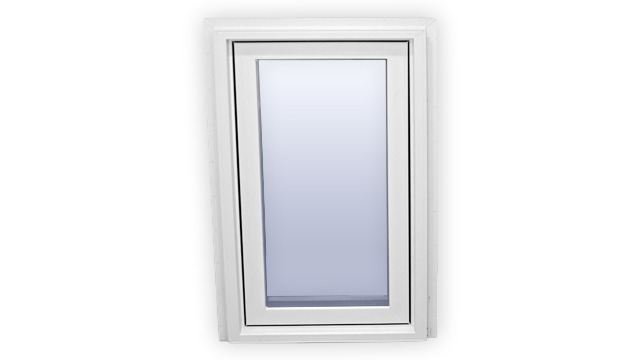

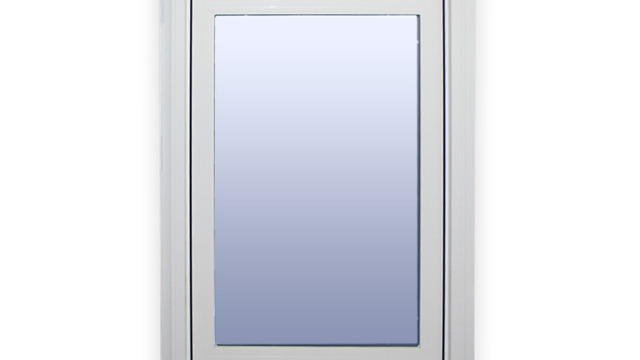

Casement Window

Berdick’s high quality machinery allows us to create almost any custom shape requested.

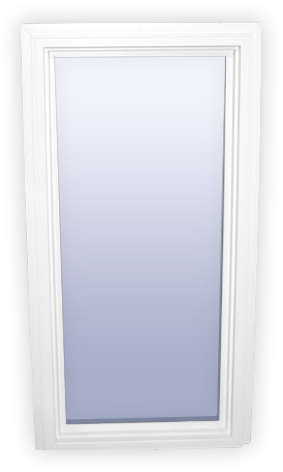

Choose whatever size suits your needs and enjoy the view to the outdoors. Combine standard picture windows with half rounds, elliptical windows, or operating units that are attractive as well as energy smart. Take advantage of your creativity!



Frame Depth3 1/4"- jamb with multi-chaber constructions with energy safings.

With jamb extensions up to 14" wall depth possible. (bei allen gleich, nur bei Hopper anders)

Material of Sash and FramePVC with welded corners on sash and frame
Glazingavailable in dual pane 3/4" OD and triple pane 1 3/8" OD with different LoE codings
Hardwareindustry leading Canadian manufactured Radisson hardware

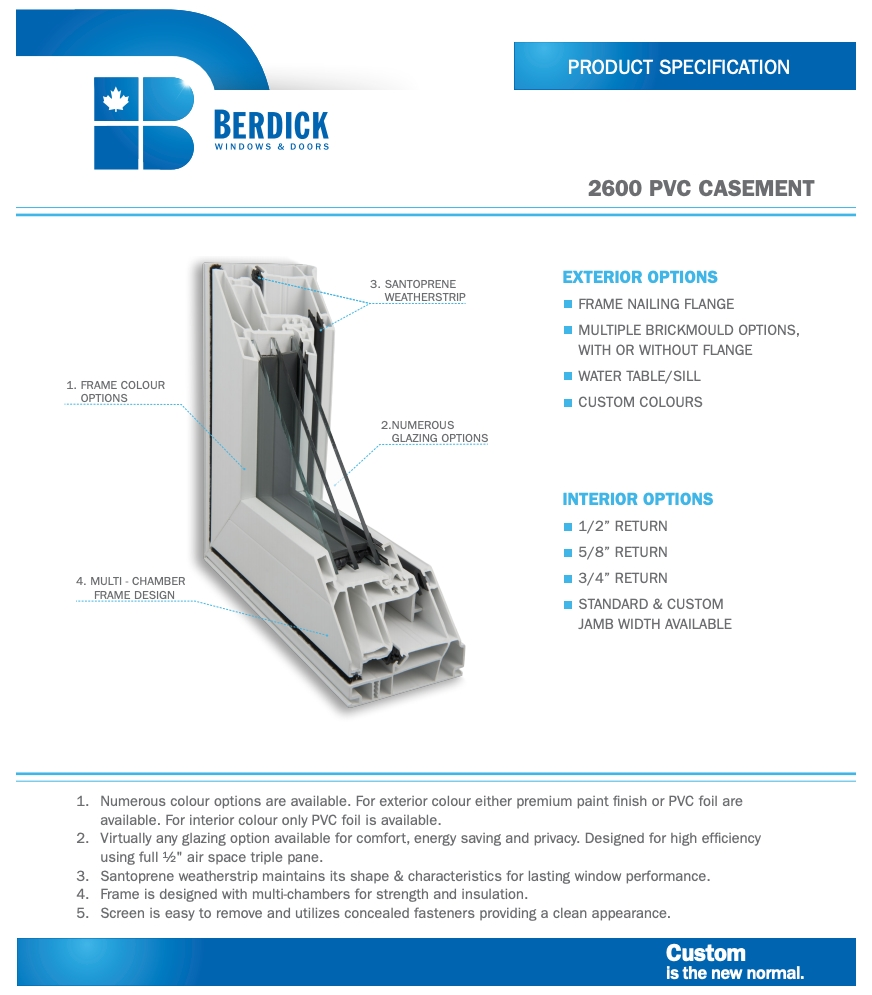

Thermal ratingsVarious ratings depending on glazing option selected, see spec sheet
Number of window gasketsOne time ultra fab black dust fin weather stripping on sash and two black Santoprene weather stripping on frame
DimensionsMin. W 13" Max. W 36"

Min. H 16" Max. H 72"

Material of frame and sash

Glue-lam pine, Nordic timber quality class A1-A3


We’re using industry leading colors from Gentek

Vinyl Wrap
